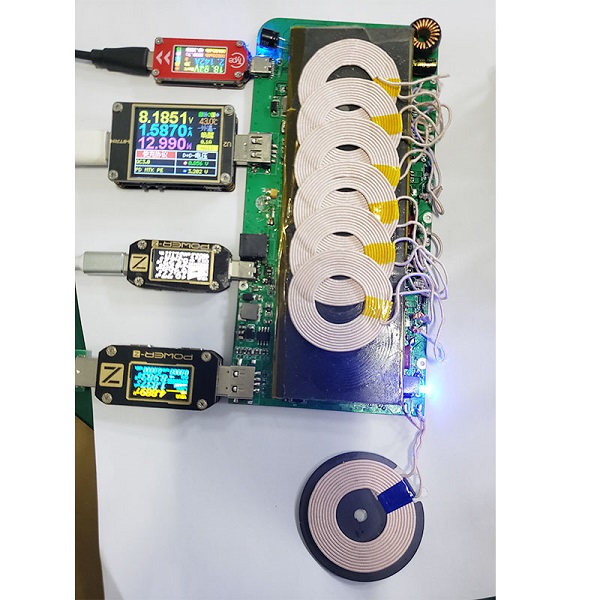

Multi-coil wireless charging PCBA

  • 7 coil wireless charging PCBA + Apple Watch wireless charging
  • 7 coil wireless charging PCBA + Apple Watch wireless charging
  • 7 coil wireless charging PCBA + Apple Watch wireless charging
7 coil wireless charging PCBA + Apple Watch wireless charging7 coil wireless charging PCBA + Apple Watch wireless charging7 coil wireless charging PCBA + Apple Watch wireless charging

7 coil wireless charging PCBA + Apple Watch wireless charging

  • Apple Watch wireless charging
  • 7 coil wireless charging PCBA
  • Product description: 1, wireless charging 5W. Apple Watch wireless charging 2, support dual 10W/7.5W fast wireless charging. 3, USB A: 5V2A output 4, TYPE-C input supports PD protocol, QC protocol, automatica
  • INQUIRY

Product Features and Selling Points

Share our latest research and development results.

1, wireless charging 5W.Apple Watch wireless charging

2, support dual 10W/7.5W fast wireless charging.

3, USB A: 5V2A output

4, TYPE-C input supports PD protocol, QC protocol, automatically recognizes the highest voltage file of the charging head. It is recommended to use a PD charger of 60W or more in order to achieve high power operation of all interfaces at the same time.

5, DC input: voltage 20-24V, It is recommended to use a 100W charger. It can output the maximum power of all output ports at the same time.

6, USB A: output protocol QC, AFC, FCP Output voltage: 12V/9V/5V, maximum support 18W.

7, TYPE-C PD output: The maximum is 43W, and the chip has passed PD certification.

FAQ of this One-stop service for wireless charger solution

1.What’s the design code are you adopt?

Answer: Usually we adopt GB8898, GB4943 code, however European standard also practice.

We provide the best performance wireless charger solution and other electronic equipment solutions and product structure design. These early designs provide a cost-effective solution for the finished.

2. What software do you use to draw PCB circuit diagrams?

Answer: PADS Layout, Altium Designer,

3.Structural design drawing software

Answer: AutoCAD, Creo

4. Graphic design drawing software?

Answer: CorelDRAW, PS, AI

5.Are you manufacturer?

Answer: Yes, we are also a wireless charger solution provider and a finished wireless charger manufacturer. We are good at ODM/OEM. We have more than 10 years of research and development experience and manufacturing experience.We also provide solutions for electronic products such as power bank, HUB, LED desk lamp and mobile phone peripheral accessories.

6. What kind of chip are you using?

Answer: We are the distributor of Sunplus Chips in Taiwan, China. But we will also use chips from mainland China, such as E-Charging and other chips with high performance in mainland China. Other imported chips such as TI and ST will also be used.

7. What’s the minimum order quantity would be?

Answer: The minimum order quantity for customized products is 1K. If it is in stock, no minimum order quantity is required.

8.What’s the production lead time?

Answer: Generally, after the deposit of the order is paid, PCBA production only takes 15 days. It takes 25 days to produce the finished product.

9.Are you close to the sea port?

Answer: Yes, we are near to the one of the biggest port in the world and it’s the one of our advantage to export the cargos worldwide.

10.How to control the quality?

Answer: From product design to product sale, every process will be strictly controlled.we do everything which include checking the manufacturing cards,do prototype assembly and do the aging test of PCBA and finished products. Carefully each part before shipping. Including functional and visual inspection. so that we can avoid possible mistake in Client’s side.

R&D Department

Electronic product solutions mobile communication antennas and various small terminal antennas since 2009. We have established (parent company, Shenzhen Xinbinuo Communication Technology Co., Ltd.)Technology center of Shenzhen LazyCat Communication was founded in 2016. At present,

there are over 10 R & D design and technical engineers,and among them here are 8 senior hardware electronics engineers and structure engineers and 2 senior software engineers,forming an experienced and skilled professional team and laying a solid foundation to Shenzhen LazyCat Communication Technology design and technology products.
