10W/7.5W PCBA

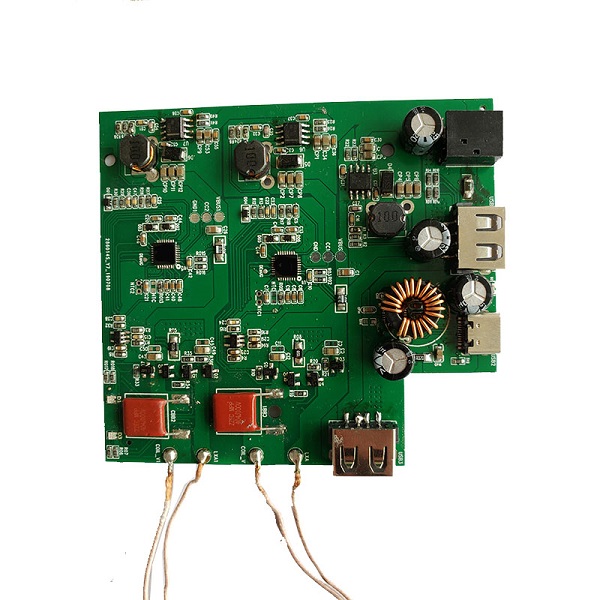

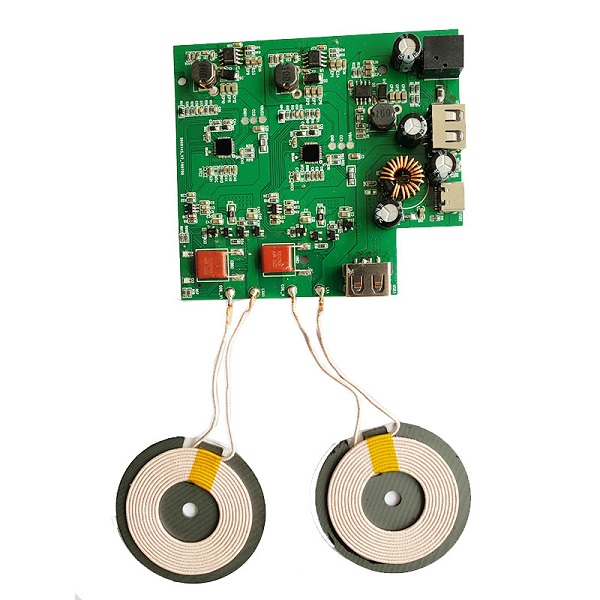

  • Wireless charging solution PCBA module PD30W dual 10W wireless charging DC20V4A
  • Wireless charging solution PCBA module PD30W dual 10W wireless charging DC20V4A
Wireless charging solution PCBA module PD30W dual 10W wireless charging DC20V4AWireless charging solution PCBA module PD30W dual 10W wireless charging DC20V4A

Wireless charging solution PCBA module PD30W dual 10W wireless charging DC20V4A

  • Product description: Wireless charging solution PCBA module PD30W dual 10W wireless charging DC20V4A
  • INQUIRY
Supply voltage: 20V4A
Wireless charging output power 1:5W/7.5W/10W
Wireless charging output power 2:5W/7.5W/10W
USB output: 5V2A
TYPE C output: PD30W
DC plug specification: 5.5MM*2.5MM
Wireless distance: 2MM-5mm
Conversion efficiency: ≥75%
Temperature protection: adjustable Protection function: over temperature, over current, under voltage, short circuit, foreign object detection
Indication function: LED

Compatibility: Compatible with QI receiving products on the market, Samsung mobile phones and Apple mobile phones


FAQ of this One-stop service for wireless charger solution

1.What’s the design code are you adopt?

Answer: Usually we adopt GB8898, GB4943 code, however European standard also practice.

We provide the best performance wireless charger solution and other electronic equipment solutions and product structure design. These early designs provide a cost-effective solution for the finished.

2. What software do you use to draw PCB circuit diagrams?

Answer: PADS Layout, Altium Designer,

3.Structural design drawing software

Answer: AutoCAD, Creo

4. Graphic design drawing software?

Answer: CorelDRAW, PS, AI

5.Are you manufacturer?

Answer: Yes, we are also a wireless charger solution provider and a finished wireless charger manufacturer. We are good at ODM/OEM. We have more than 10 years of research and development experience and manufacturing experience.We also provide solutions for electronic products such as power bank, HUB, LED desk lamp and mobile phone peripheral accessories.

6. What kind of chip are you using?

Answer: We are the distributor of Sunplus Chips in Taiwan, China. But we will also use chips from mainland China, such as E-Charging and other chips with high performance in mainland China. Other imported chips such as TI and ST will also be used.

7. What’s the minimum order quantity would be?

Answer: The minimum order quantity for customized products is 1K. If it is in stock, no minimum order quantity is required.

8.What’s the production lead time?

Answer: Generally, after the deposit of the order is paid, PCBA production only takes 15 days. It takes 25 days to produce the finished product.

9.Are you close to the sea port?

Answer: Yes, we are near to the one of the biggest port in the world and it’s the one of our advantage to export the cargos worldwide.

10.How to control the quality?

Answer: From product design to product sale, every process will be strictly controlled.we do everything which include checking the manufacturing cards,do prototype assembly and do the aging test of PCBA and finished products. Carefully each part before shipping. Including functional and visual inspection. so that we can avoid possible mistake in Client’s side.
