Wireless charger product design

UUMAO 8-30MM Invisible Wireless Charger

Invisible Wireless Charger
Under Desk Furniture Wireless Charging Pad
long distance wireless charger
8-30MM invisible wireless charging for furniture
Product description: UUMAO Suitable for desktops with a thickness of 8-30MM.The invisible furniture wireless charger makes your desktop more tidy. (In stock. If you need samples, please contact customer service)
INQUIRY

Product Features and Selling Points

1,Product Description:

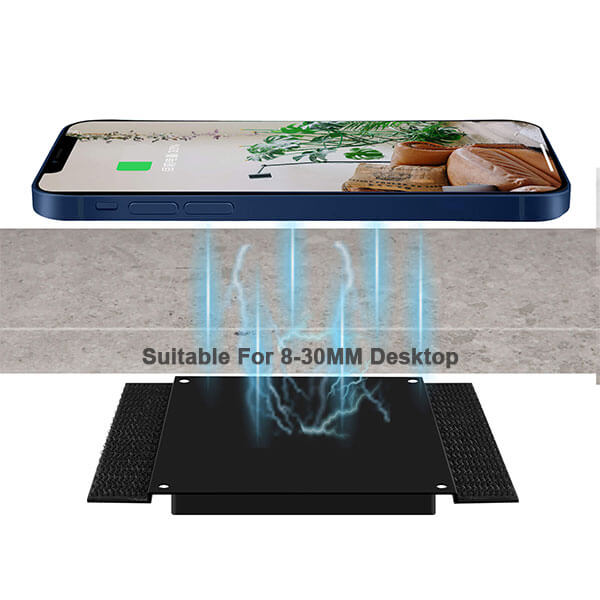

Before installing, measure the thickness of your desk. This product is a wireless charging transmitter for standard QI. The minimum distance is 8MM. The maximum distance is 30MM.
2.Wireless Charging Signal Detector:
Press and hold the button to enter the positioning mode: "The mobile phone cannot be charged in the positioning mode" Place the detector in the exact center of the table sticker coil. Power up the transmitter again. Look under the desk for the brightest spot on the desk detector.
If you hold down the key. The detector light is always on. You need to look for the location where the detector lights are the brightest. Then fix the desk sticker coil in this position.

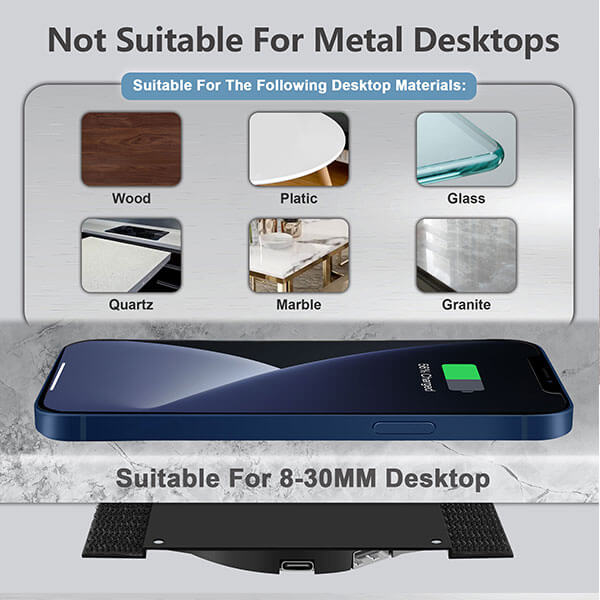

3,Scenes To Be Used:
Suitable for installation under thick desktops. Suitable for marble, wood, glass and other non-metallic non-conductive tables.

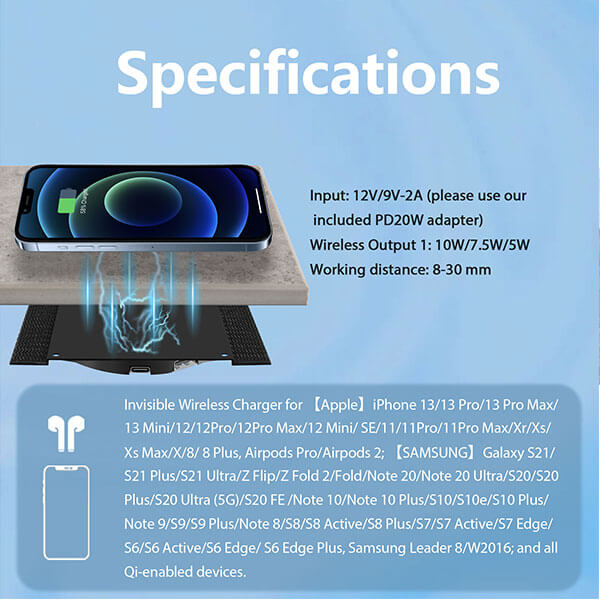

4,Charging Parameters:
TYPE-C input: 12V/9V-2A (please use our included PD20W adapter)
output power: 10W/7.5W/5W
Effective charging distance: 8MM-30MM
5. LED light display:
Power on: the blue light flashes for 1 second
Standby: Green light is always on
Charging: the blue light is always on
High temperature or FOD foreign object alarm: blue light flashing

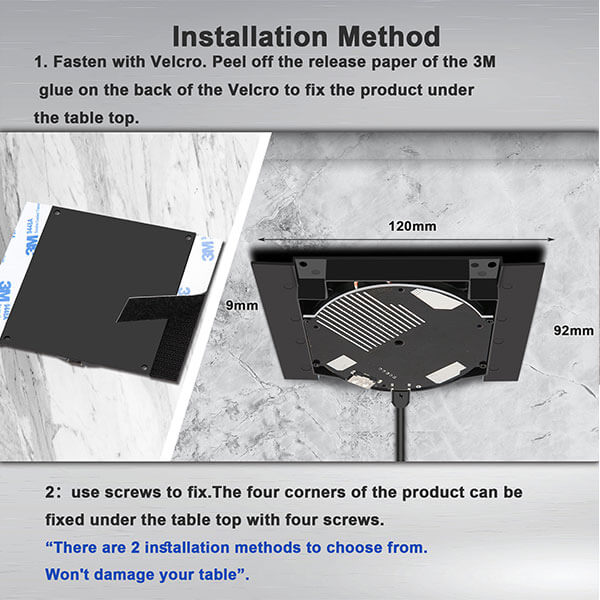

6,How To Install:
No drilling or tools required, Tear off the release paper from the double-sided Velcro tape on the product.

Paste it under your desk. The Velcro is designed to be more flexible and can be installed in other places for product replacement. Will not cause permanent damage to your desktop or counter-(optional mounting screws also included).

Company Information

Shenzhen LazyCat Communication Technology has been dedicating itself to one-stop solution of Wireless chargers and electronics.The service ranges from wireless charger solution design,production, after-sales service, etc.

Our factory locates in shenzhen district, factory mainly manufacture wireless charger。Since 2009. We provide Electronic product solutions and mobile communication antennas and various small terminal antennas. Since 2016. We provide wireless charger solutions. All our products comply with CE, FCC, ROHS and other standards,

After years of efforts, we provide customers with professional program design and product design, We have a highly qualified engineer team, advanced production equipment and detection systems, We only offer top quality products with competitive price, considerate service and timely delivery.

"One-stop service, Quick feedback" is our tenet. And we are ready to establish cooperation with new clients around the world based on mutual benefits and development. You will find us a reliable & powerful support from China.

Introduction: What is Shenzhen LazyCat Communication Technology Co., Ltd.?

Our team of engineers has more than 10 years of experience. We are a company and exporter of innovative solutions. The solutions we developed have been exported to more than 20 countries.

We are professional CHARGING EQUIPMENT INDUSTRY CHAIN SERVICE PROVIDER, focusing on comprehensive solutions. Including circuit design. Product structure design. Mold development. Product manufacturing production. Logistics and transportation, etc.

Products : What can Shenzhen LazyCat Communication Technology supply ?

Project planning, scheme circuit diagram design and shell structure design, mold development. Finished product assembly

Advantages: Why choose Shenzhen LazyCat Communication Technology ?

Honesty is Shenzhen LazyCat Communication Technology best policy;

Mutual benefit and long term cooperation is Shenzhen LazyCat Communication Technology goal;

Competitive pricing based on own world first class design is Shenzhen LazyCat Communication Technology unique advantage ;

Strict quality control and punctual shipment schedule is Shenzhen LazyCat Communication Technology basic guarantee;

FAQ of this One-stop service for wireless charger solution

1.What’s the design code are you adopt?

Answer: Usually we adopt GB8898, GB4943 code, however European standard also practice.

We provide the best performance wireless charger solution and other electronic equipment solutions and product structure design. These early designs provide a cost-effective solution for the finished.

2. What software do you use to draw PCB circuit diagrams?

Answer: PADS Layout, Altium Designer,

3.Structural design drawing software

Answer: AutoCAD, Creo

4. Graphic design drawing software?

Answer: CorelDRAW, PS, AI

5.Are you manufacturer?

Answer: Yes, we are also a wireless charger solution provider and a finished wireless charger manufacturer. We are good at ODM/OEM. We have more than 10 years of research and development experience and manufacturing experience.We also provide solutions for electronic products such as power bank, HUB, LED desk lamp and mobile phone peripheral accessories.

6. What kind of chip are you using?

Answer: We are the distributor of Sunplus Chips in Taiwan, China. But we will also use chips from mainland China, such as E-Charging and other chips with high performance in mainland China. Other imported chips such as TI and ST will also be used.

7. What’s the minimum order quantity would be?

Answer: The minimum order quantity for customized products is 1K. If it is in stock, no minimum order quantity is required.

8.What’s the production lead time?

Answer: Generally, after the deposit of the order is paid, PCBA production only takes 15 days. It takes 25 days to produce the finished product.

9.Are you close to the sea port?

Answer: Yes, we are near to the one of the biggest port in the world and it’s the one of our advantage to export the cargos worldwide.

10.How to control the quality?

Answer: From product design to product sale, every process will be strictly controlled.we do everything which include checking the manufacturing cards,do prototype assembly and do the aging test of PCBA and finished products. Carefully each part before shipping. Including functional and visual inspection. so that we can avoid possible mistake in Client’s side.

R&D Department

Electronic product solutions mobile communication antennas and various small terminal antennas since 2009. We have established (parent company, Shenzhen Xinbinuo Communication Technology Co., Ltd.)Technology center of Shenzhen LazyCat Communication was founded in 2016. At present,

there are over 10 R & D design and technical engineers,and among them here are 8 senior hardware electronics engineers and structure engineers and 2 senior software engineers,forming an experienced and skilled professional team and laying a solid foundation to Shenzhen LazyCat Communication Technology design and technology products.
